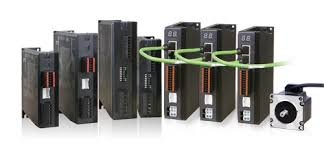

Our Stepping Systems are designed to provide precise, reliable, and smooth motion control in a variety of applications. The DP3CL, DP3C, DP3F, DP3L, and DP3L1 series stepping systems offer a range of performance options suited for different industrial needs—from basic motion control to more advanced, high-precision applications. These systems are ideal for use in robotics, automation, CNC machines, and other motion-controlled machinery.
Key Benefits of Our Stepping Systems:
- High Precision: Offers precise positioning with minimal overshoot and settling time.
- Energy Efficient: Designed to reduce energy consumption while providing high torque output.
- Reliable Performance: Built for industrial applications, ensuring robust operation even under high-load conditions.
- Versatility: Suitable for a wide range of applications, from basic to high-performance systems.
- Easy Integration: Designed to work seamlessly with various motion controllers and automation systems.
Model Overview
DP3CL Series – Compact and Cost-Effective Stepping Motor System
The DP3CL series offers a compact, low-cost solution for basic motion control applications. It is designed for use in applications where space is a constraint but performance and reliability are still key.
- Key Features:
- Compact Design: Small form factor for easy integration into space-constrained applications.
- Cost-Effective: Provides excellent performance at an affordable price point.
- Smooth Motion Control: Offers precise step control with minimal vibration.
- Wide Voltage Range: Supports a variety of voltage inputs, making it versatile for different systems.
- High Holding Torque: Ensures reliable operation in a wide range of loads and conditions.
- Applications:
- Automated assembly lines
- CNC machines (light-duty)
- Packaging systems
- Laboratory and research equipment
DP3C Series – High-Performance Stepper System for Industrial Automation
The DP3C series stepping system is ideal for industrial automation and motion control applications that require more torque and stability. This model is designed for medium-duty applications and delivers excellent performance with higher load capacity.
- Key Features:
- Increased Torque Output: Offers higher torque for applications that demand more power.
- Precise Control: Provides accurate and smooth control over position and speed.
- Multiple Control Modes: Supports various modes including micro stepping for improved precision and less vibration.
- Built-In Protection: Overload, overvoltage, and short-circuit protection for reliable operation.
- Versatile Mounting Options: Allows for flexible installation in different machinery configurations.
- Applications:
- Robotic arms and handling systems
- CNC machinery (medium-duty)
- Textile and printing machines
- Packaging machinery
DP3F Series – Flexible and High-Torque Stepping Motor System
The DP3F series is designed for applications that require higher torque and enhanced flexibility. With improved performance in dynamic load conditions, this series is suitable for more demanding tasks where quick adjustments and high precision are critical.
- Key Features:
- High Torque Performance: Delivers greater torque even at higher speeds.
- Advanced Control Algorithms: Optimized for high-speed performance and smoother operation.
- Micro stepping Capability: Provides higher resolution for smoother motion and less mechanical noise.
- Compact and Durable: Built with a robust design to endure continuous, heavy-duty use.
- Integrated Feedback: Offers real-time position feedback for precise motor control.
- Applications:
- High-speed pick-and-place systems
- Robotics (including 3D printing)
- Advanced CNC machines
- Conveyor systems and material handling
DP3L Series – Large Torque Stepping System for Heavy-Duty Applications
The DP3L series is engineered for heavy-duty applications requiring high torque and long operational life. This series is suitable for larger machinery and industrial systems that require reliable performance under load.
- Key Features:
- Heavy-Duty Performance: Provides robust torque for larger loads and high-duty cycle applications.
- High Precision and Stability: Minimizes vibration and ensures smooth motion control, even in complex applications.
- Wide Range of Sizes: Available in multiple sizes to fit varying load requirements.
- Longer Operational Life: Built to last longer in high-demand environments.
- Multiple Step Resolutions: Offers a range of stepping resolutions for different performance needs.
- Applications:
- Heavy-duty industrial machinery
- Automated manufacturing systems
- Material handling and large-scale conveyors
- Heavy-load CNC machines
DP3L1 Series – Advanced High-Performance Stepping System
The DP3L1 series is designed for high-precision, high-load applications. It combines advanced stepping technology with high torque output and precise control for the most demanding industrial environments.
- Key Features:
- High Precision: Provides precise positioning with excellent accuracy, even under high loads.
- Enhanced Micro stepping: Advanced micro stepping capabilities for smooth and precise control, reducing mechanical wear.
- High Torque at Low Speeds: Delivers substantial torque at low speeds, ideal for applications requiring consistent force.
- Compact Yet Powerful: Despite its compact design, it delivers significant torque for heavy-duty applications.
- Integrated Controller: Offers integration with various control systems for ease of use.
- Applications:
- High-precision CNC machining
- Heavy-duty robotics and automation systems
- Textile and printing machinery
- Large-scale material handling
Why Choose Our Stepping Systems?
- Precision and Smoothness: With micro stepping technology and advanced control algorithms, our stepping systems offer unparalleled precision and smooth operation across various load conditions.
- Wide Range of Applications: Whether you’re handling small, light-duty tasks or large, heavy-duty machinery, we have the right system for your needs.
- Cost-Effective: Our stepping motors deliver excellent performance at an affordable price, ensuring you get the best value for your investment.
- Reliability: Built for industrial use, these systems are designed to last under demanding conditions and provide consistent performance over time.
